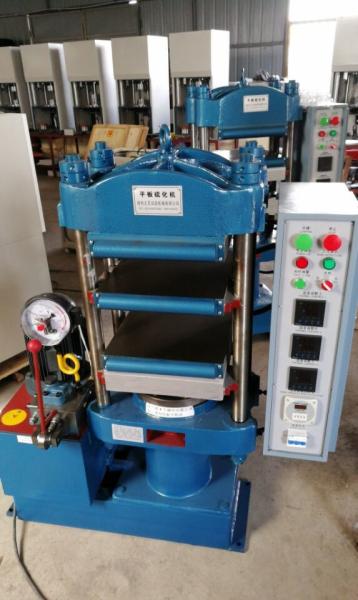

Electric Heating Rubber Testing Instruments Flat Plate Vulcanization Machine

Name: Electric Heating Rubber Testing Instruments Flat Plate Vulcanization Machine
Brand: JINHAIHU
Price: 1 USD

Brand Name : JINHAIHU

Model Number : 25T

Certification : ISO 9001

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T, L/C, Western Union

Supply Ability : 10 sets per months

Delivery Time : 10 days after order

Packaging Details : Standard wooden case

maximum mode-locking pressure : 0.25MN

maximum working pressure of hydraulic system : 14.5 MPA

hot plate size (length x width) : 350 × 350mm

hot plate number : 3 (can be increased as required)

hot plate spacing : 75mm (magnified as required)

the plunger rises at a speed : 16.5 mm / s

shape size : 1250 x 550 × 1420mm

Contact Now

Features and uses:

This machine is suitable for all kinds of rubber products vulcanization, but also widely used in solid plastics, foam, building decoration materials, decorative products pressing molding. It has perfect function and compact structure. Automatic temperature control, alarm, manual mold, automatic voltage, timing. PC controller can also be used according to the user's requirements to realize the automatic completion of the process according to the preset working procedure.

Technical parameters:

maximum mode-locking pressure	0.25MN
maximum working pressure of hydraulic system	14.5 MPA
hot plate size (length x width)	350 × 350mm
hot plate number	3 (can be increased as required)
hot plate spacing	75mm (magnified as required)
the plunger rises at a speed	16.5 mm / s
maximum stroke of plunger	150mm
maximum working temperature	electric heating temperature ≤ 200 ℃
total electric heating power	7.2 KW
motor power	2.2 KW
shape size	1250 x 550 × 1420mm
weight	≈ 1T
